We completed the software which will be used in the preliminary works of Deriner Dam which is the third biggest arch dam of the world (by year 2001) and will make the body drawings and calculations during the construction. Deriner Dam Arch Body; It is a structure consisting of double curvature, 253 m high, 720 m crest length and 3.5 million m3 concrete volume, upstream surface is one and downstream surface is composed of 3 different parabola.
Since the calculations and drawings of this structure would be almost impossible to do manually, a drawing program that would naturally be used both in preliminary work and in the construction phase was needed.
A new program has been written into the AutoCAD program used in the project, so that this program, which is already used and already used in the project drawings, has taken care of all tasks without the need for a separate program.

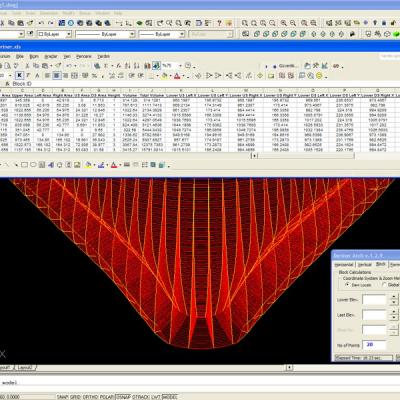

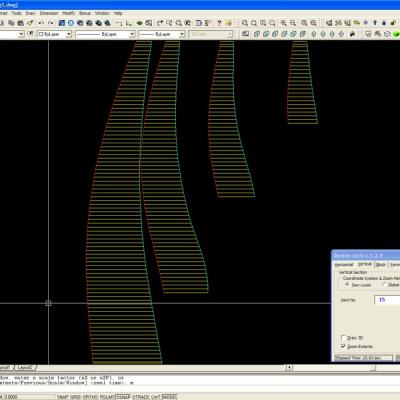

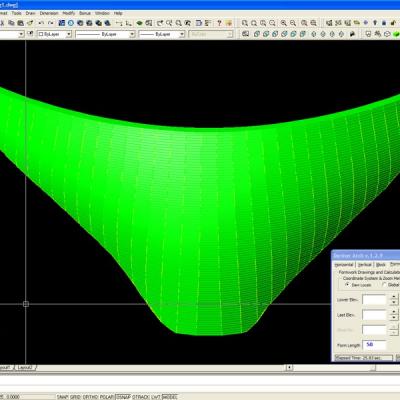

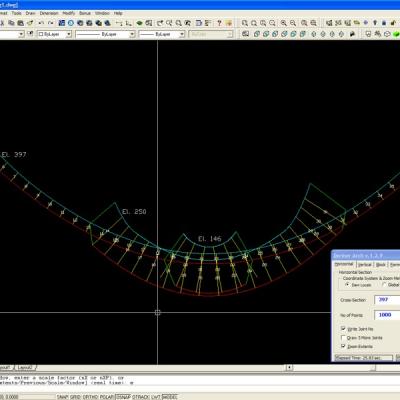

The program can produce horizontal and vertical sections from any part of the body, draw the individual or whole of the body of the body consisting of approximately 2000 bays, place the formworks and provide all necessary data such as length, area, volume and coordinates in a way arranged in Microsoft Excel program. Formwork pre-work was done with this program also.
